Luggage Tag Template Guide With Exact Sizes, Bleed and Safe Areas
The three standard tag sizes, the exact bleed and safe area math for each, where the strap hole goes, and which material actually survives an airport.
A standard luggage tag trims at 2.5 x 4.25 inches, with 2 x 3.5 for insert-style tags and about 3 x 5 for jumbo tags. Build the file 0.125 inches larger on every side for bleed, keep all text 0.125 inches inside the trim, and leave a 0.35 inch clear zone around the 3/16 inch strap hole near the short edge. Print on rigid plastic for travel; laminated paper is for events and gifting.
Quick answer
Three rectangles, one circle, and the file sets itself up
Every luggage tag template is the same drawing at a different scale. The bleed line sits 0.125 inches outside the trim and the background runs to it. The safe area sits 0.125 inches inside the trim and every letter of text stays within it. The 3/16 inch strap hole centers about 0.3 inches in from the short edge and keeps a 0.35 inch zone clear around it. Get those four elements right at 2 x 3.5, 2.5 x 4.25, or 3 x 5 inches and the tag prints cleanly the first time.
Standard Luggage Tag Sizes and What Each One Fits
Luggage tags settle into three practical sizes, and the right one depends on how much has to stay readable at arm's length on a moving carousel.
| Trim size | File size with bleed | Safe area for text | Best for |
|---|---|---|---|
| 2 x 3.5 in | 2.25 x 3.75 in | 1.75 x 3.25 in | Insert cards for clear holders, corporate gift sets, minimal name-and-phone tags. |
| 2.5 x 4.25 in | 2.75 x 4.5 in | 2.25 x 4 in | The classic standalone luggage tag. Room for name, phone, address and a logo. |
| 3 x 5 in | 3.25 x 5.25 in | 2.75 x 4.75 in | Jumbo tags for sports gear, tour groups, and anything read from a distance. |
The bleed column is not optional. Every file is built 0.125 inches larger than the finished tag on each side, and the safe area sits 0.125 inches inside the trim, which is why each row differs from its neighbor by a quarter inch in both directions.
One caution on the smallest size: 2 x 3.5 inches works because it borrows the business card format, and that is exactly what an insert-style tag is. If you are filling clear holders you already own, measure the holder window before ordering, because holder manufacturers do not agree on a standard. The full range of tag dimensions beyond these three lives in our hang tag size guide, and rigid plastic hang tags start at $25.27 in any of them.
How to Set Up the Bleed, the Safe Area, and the Hole
A luggage tag template is three nested rectangles and one circle, and every file problem we see on tag orders violates one of the four.
The bleed line sits 0.125 inches outside the trim on every side. Background color, patterns, and photos extend to it, so a 2.5 x 4.25 tag is designed on a 2.75 x 4.5 canvas. The trim line is where the cutter aims. The safe area sits 0.125 inches inside the trim, and every letter of text stays within it, because a cutter that drifts a fraction of a millimeter outward eats bleed, but one that drifts inward eats whatever you parked against the edge.
The hole is the part unique to tags. A standard 3/16 inch drill hole centers about 0.3 inches in from the short edge. Give it a keep-out zone of 0.35 inches around its center on both sides of the tag, since the drill passes through front and back in one stroke. Solid backgrounds can run straight through the zone; names and numbers cannot. Slot punches for wider straps need more clearance, so note the slot size in your order comments and we confirm the keep-out before anything is drilled. Drilling itself is handled by our hole drilling service, which also covers custom hole positions.
The fastest route is to skip drawing any of this yourself: the blank template library has the guides pre-built at each trim size. If you want the reasoning behind the rectangles, bleed and trim explained covers it, and the print-ready file checklist covers the export settings that keep the guides out of the final PDF.
Plastic, Laminated Paper, and What Survives an Airport
Material decides whether a luggage tag is still legible after its tenth flight, and the honest answer is that paper and plastic are not competing for the same job.

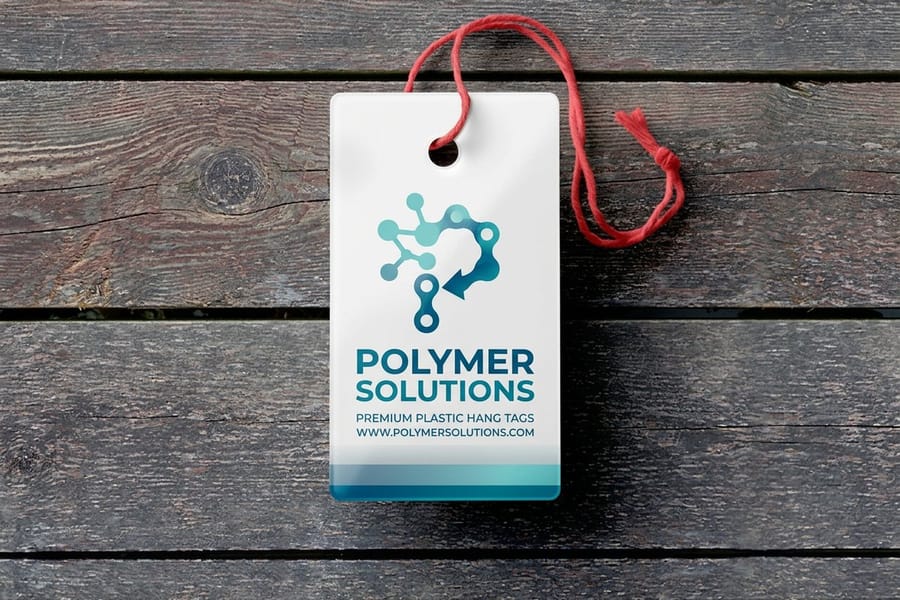

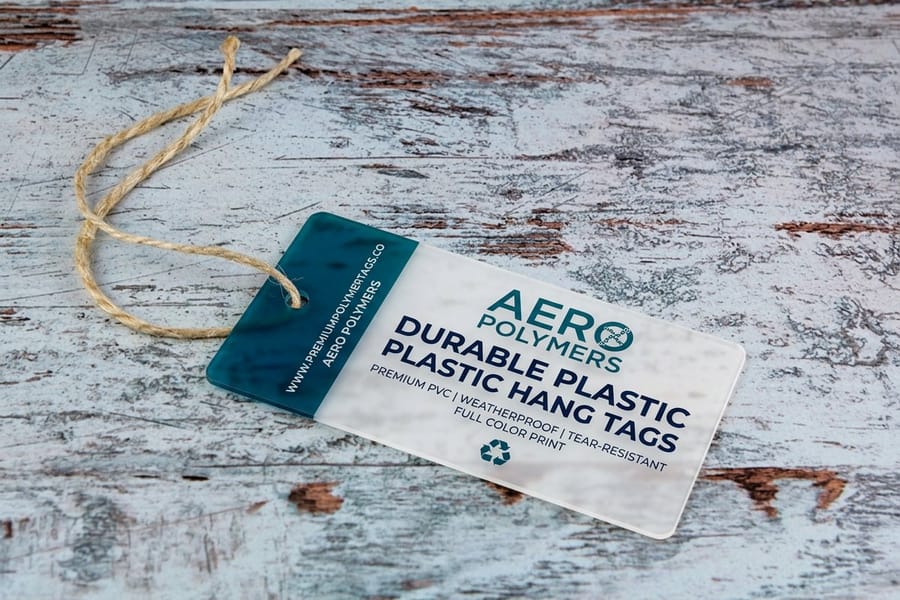

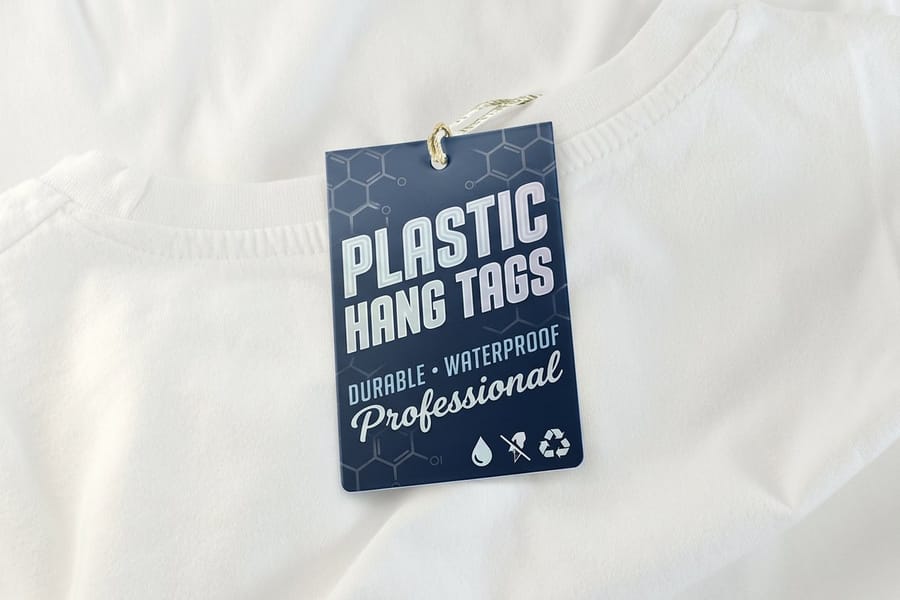

Rigid plastic is the travel-grade choice. It does not absorb water, it flexes instead of creasing when a heavier bag lands on it, and the printed image cannot soak off. Plastic hang tags start at $25.27, and if you want the insert-card format in the same material, plastic business cards run from $180.02 in the 2 x 3.5 inch size. The thickness trade-offs between plastic gauges are covered in our 30mil plastic card guide; thicker stock resists tearing at the hole, which is where every tag fails first.
Laminated paper is the event-and-gifting choice. Gloss lamination seals the faces against fingerprints and light rain, and standard hang tags start at $25.27, so tagging two hundred conference bags stays affordable. The limit is the drill hole: lamination seals the surfaces, not the punched edge, so the exposed core wicks moisture over repeated wet exposure. Fine for a weekend, wrong for a year of airports.
Unlaminated paper belongs on gift bags and favors, where the tag's whole life is one handoff. Put it on a suitcase and the first rainy curbside drop-off ends it. The same durability logic, argued product by product, is in plastic vs paper cards.
Attachment Loops, Straps, and Ordering Tags That Last
The hole is only half of the attachment; what goes through it decides how long the tag stays on the bag. Clear vinyl loop straps are the airline standard because they have no sharp edge to saw at the hole. Metal rings last longer than the tag itself but concentrate wear on one point of the hole rim, which is another argument for thicker plastic if the tag will travel weekly. Braided elastic suits gift and event tags where the loop only has to survive one wearing.
Match the hole to the hardware before you order. A 3/16 inch hole takes standard loops and rings. Wide woven straps need a slot punch instead, and that changes the keep-out zone, so decide on the strap first and the artwork second, not the other way around.

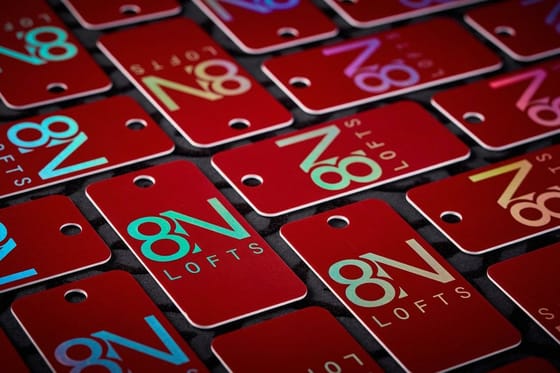

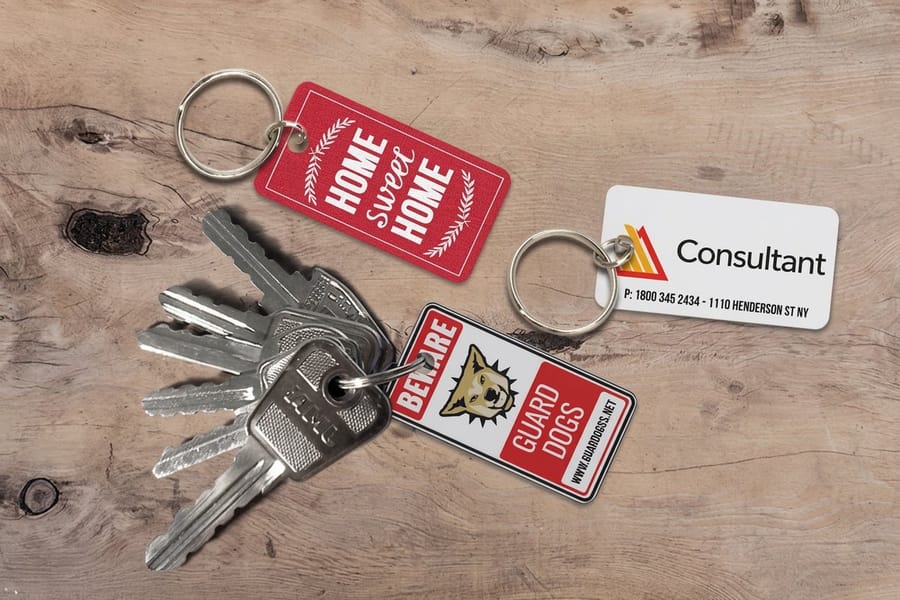

If you are ordering tags as part of a larger identity job, two neighbors are worth a look while the files are open. Key tags, from $309.69 in bulk quantities, use the same drilled-plastic construction for keychains and membership tags. And if your tags hang on retail products rather than luggage, the hang tag printing category carries the string-and-eyelet variants that market rather than identify. For bag tags specifically built around free downloadable layouts, the free bag tag template guide is the companion to this page.

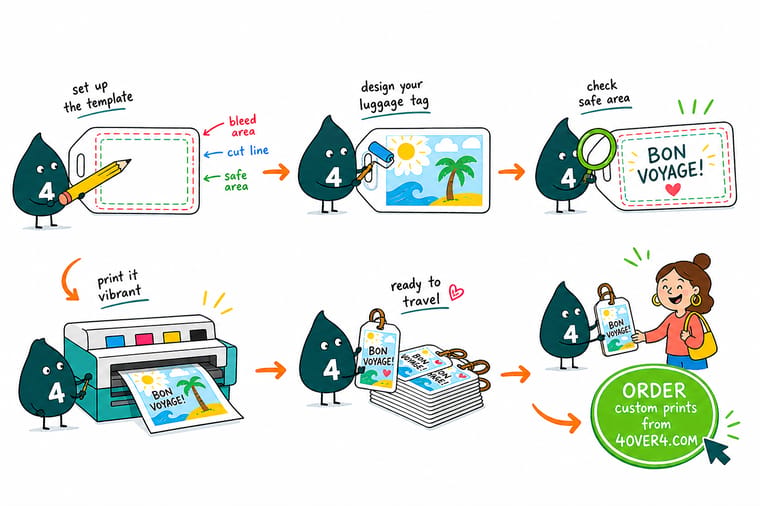

Wally explains the luggage tag template
Three rectangles, one circle, zero white slivers
Wally draws the trim line first, the shape of the finished tag. Then he pushes the background out an eighth of an inch to the bleed line so the cutter can drift without leaving a white edge. Then he pulls the text in an eighth of an inch to the safe area so the blade never touches a phone number. Last, he circles the strap hole and keeps everything a third of an inch away from it, because the drill goes through both sides and does not read the artwork first.
Order plastic hang tags →Specs and pricing
Tag materials, sizes, and starting prices
Compare the tag options side by side, with live configuration choices and starting prices straight from the 4OVER4.COM configurator.
Print it
Order tags built for the baggage carousel
Explore more
Where to go next
By the numbers
Tag printing you can count on at 4OVER4
Common Questions
Your luggage tag questions, answered
What size is a standard luggage tag?
The classic standalone luggage tag trims at 2.5 x 4.25 inches, big enough for a name, phone number, and address at readable sizes. Insert-style tags that slide into a clear holder use the 2 x 3.5 inch business card format, and jumbo tags for sports gear and group travel run around 3 x 5 inches. If you are printing tags to slot into holders you already own, measure the holder window first, because holder sizes are not standardized.
How much bleed does a luggage tag template need?
0.125 inches on every side, the same as any other print product. A 2.5 x 4.25 inch tag is built at 2.75 x 4.5 inches with the background running all the way to that outer edge. The cutter aims for the trim line but can drift a fraction of a millimeter, and bleed is what keeps that drift invisible. Keep text a further 0.125 inches inside the trim line so nothing readable ever sits near the blade.
Where does the hole go on a luggage tag?
Centered on the short edge, with the hole center about 0.3 inches in from the trim. The standard drill hole is 3/16 inch across, which takes a common loop strap or a metal ring. Leave a clear zone of about 0.35 inches around the hole center, front and back, because the drill goes through both sides of the tag in one pass. If your design has a solid background, run it through the hole zone; the drill removes material, not artwork logic.
Should a luggage tag be plastic or paper?
For a tag that travels, plastic. A rigid plastic tag survives rain, conveyor belts, and being crushed under other bags, and the print is in no danger of soaking off. Laminated paper tags hold up for an event or a short trip at a lower cost, but the exposed core at the drill hole wicks water over time. Unlaminated paper belongs on gift bags and event favors, not on a suitcase. Our guide to plastic vs paper business cards walks through the same durability trade-off in more detail.
Can I print on both sides of a luggage tag?
Yes, and a travel tag should use both. The common layout puts the name and phone number large on the front and the address plus an if-found instruction on the back. Set up both sides at the same trimmed size with the same bleed and safe area, and remember the hole position mirrors when the tag flips, so the keep-out zone applies to the same corner on both files.
Do you have a ready-made luggage tag template?
Yes. The blank template library at 4OVER4.COM has correctly sized layouts with the bleed, trim, and safe area already drawn, downloadable for the common design tools. Start from the template that matches your trim size, place your text inside the safe area guides, and export a PDF with the bleed included. That one habit removes almost every file problem we see on tag orders.
Get Started
Ready to print tags that outlast the trip?
Pick a size, start from a correctly built template, and we print rigid plastic tags with the hole drilled exactly where the strap needs it.
