Domed 3D Stickers and How the Resin Dome Actually Works
Domed stickers are printed flat and finished with a poured resin lens. Here is how the pour works, which resin survives sunlight, the outlines it will hold, and when a flat sticker is the better buy.
A domed 3D sticker is a printed vinyl label, cut to shape, with a drop of clear two part polyurethane resin poured on top that surface tension pulls into a lens roughly a millimetre thick. The dome seals the ink completely and takes every scuff itself, which is why domed nameplates and vehicle emblems still read after years outdoors. It also magnifies, so artwork has to stay inside a flat centre, and it is poured one piece at a time, so it costs far more per sticker than flat printing.
Quick answer
A poured lens over an ordinary printed label
Doming adds nothing to the print. It adds a clear plastic lens over it. Resin is dropped on a cut label, spreads to the edge, stops where the edge stops, and cures into a hard convex layer. Polyurethane resin holds its colour in daylight while epoxy yellows, the curve magnifies anything sitting under its shoulder, and each piece is poured on its own. Small badges that get handled and live outdoors are what the process is for. Volume giveaways are not.
What a Domed 3D Sticker Actually Is
Strip the marketing off and a domed sticker is two ordinary things stacked. Underneath is a printed self adhesive label, usually white or clear vinyl, sometimes polycarbonate when the piece has to take abuse. On top is a clear layer of two part polyurethane resin, mixed, dispensed as a measured drop, and left to cure.
The dome is not moulded and no tool touches it. The resin is poured onto a piece that has already been cut to its final outline, it spreads until it reaches that cut edge, and then it stops. Surface tension does the shaping. The liquid pulls itself into the smoothest shape it can hold, which is a shallow lens, and it holds that shape while it hardens. Nothing presses it, which is why the top is optically clear rather than textured.
That sequence explains the two things people find surprising about ordering them. The artwork has to be printed and cut before doming starts, so the print job and the doming job are separate steps with separate lead times. And because every piece is domed individually, a run of five thousand takes five thousand pours. Compare that to roll and sheet sticker production, where the whole sheet is printed and cut in one pass, and the price gap stops looking mysterious.
The Resin Dome Effect, and the Lens Nobody Warns You About
Depth on a domed sticker comes from three things happening at once. The clear layer has real thickness, so the artwork sits visibly below the surface. The curve reflects a highlight that moves as you tilt the piece. And the resin is a lens, so it magnifies whatever is underneath.
That third one is the part that catches people out. Magnification is even across the flat middle of the dome and is not, near the shoulder where the curve drops toward the edge. A logo centred in the piece looks slightly larger and richer. A line of legal text set close to the outline bends, thickens on one side, and can become genuinely hard to read. It is the same distortion you get looking through the rim of a drinking glass, at a smaller scale.
The fix is spatial, not typographic. Keep everything that has to stay legible inside the flat centre, and give the outline a margin of plain colour to itself. A designer who has done this once gets it right by instinct. A designer who has only worked on flat vinyl stickers will fill the artboard to the trim line, because on a flat print that is exactly what you should do.
Durability, Sun, and What Actually Fails First
A domed sticker is tough in a specific way. The ink is sealed under a millimetre of hard plastic, so nothing abrades it, no solvent reaches it, and washing it changes nothing. Scuffs land in the clear layer above the print instead of in the print, which is why a domed badge on a toolbox still reads perfectly after a year of being knocked about.
Two things do fail, and neither is the print.
| Failure | Why it happens | What prevents it |
|---|---|---|
| Yellowing | Epoxy resin ambers under ultraviolet light. It is the cheap resin and it is an indoor material. | Insist on polyurethane for anything that sees daylight. |
| Edge lift | The cured dome is stiff. On a curve, or on a surface that was dusty or waxed, the rim levers itself up and dirt gets under it. | Clean with isopropyl alcohol, apply from the centre outward, and keep domes off tight radii. |
Heat is the quiet limit. The resin softens well before the vinyl underneath does, so a domed piece must never go through a laminator, a heat press, or an oven, and anything pressing on it while it is hot in direct sun can leave a mark. If the application involves heat at any stage, dome is the wrong answer and a printed outdoor vinyl is the right one. Our guide to outdoor sticker materials that survive sun and rain covers the face stock and laminate combinations that do hold up, and sticker materials explained sets out how each substrate behaves before any coating goes on.
Where a Dome Is Worth the Money
A dome earns its price where the piece is small, permanent, and touched. Equipment nameplates and serial plates are the classic case, because the dome takes the wear that would otherwise sand the print off a control panel. Vehicle emblems and dealer badges are the second, since they live outdoors on a hard flat panel and have to look like part of the product rather than like a sticker. Keychains, trophies, hard hats and instrument bezels follow the same logic.
It stops being worth it fast in three places. Anything handed out in volume, where you are buying reach rather than permanence. Anything applied to a soft, flexible or tightly curved surface. And anything where a different effect would actually read better from a distance, which is more often the case than people admit. A custom holographic sticker at $322.98 catches light across a room in a way a clear dome never does, and embossed stickers at $322.98 give you a surface that changes under a fingertip without adding a millimetre of rigid plastic.
For giveaway quantities the honest comparison is blunt. Die-cut stickers in a custom outline start at $93.37 and vinyl stickers start at $25, printed flat, cut clean, and shipped in numbers a doming line would take days to work through. Spend the dome budget on the fifty pieces that go on hardware, and print the rest flat from the custom sticker printing range.
Shapes and Sizes a Dome Will Hold
The cut outline is the mould. Resin runs until it finds an edge and then stops there, so the shape you cut is the shape the dome takes, and some shapes cannot hold a pour.
- Circles, ovals and rounded rectangles. Even height corner to corner. These are what doming shops quote fastest and price best.
- Badge and shield outlines. Fine as long as every corner carries a radius. A generous corner is what stops the resin pooling.
- Sharp points and thin spikes. A tip narrower than the dome is tall has no edge to grip. The resin thins out and the point reads flat, so the star you designed arrives with soft tips.
- Interior cut-outs and narrow bridges. The pour crosses the gap or drips through it. If your mark has a hole in the middle, print the hole rather than cutting it.
On size, small wins. Between roughly one and three inches across, the dome holds an even height and the cure is quick enough that little settles into it. Larger pieces need much more resin, the centre reads thicker than the rim, and every speck of dust during the cure is trapped in a wide clear window where you will see it. If you need to cover a broad area, print it flat and dome a small badge to sit next to it. The same shape rules apply to the cutting stage on any product, which is why the die-cut sticker guide and the standard sticker and label size guide are worth reading before you draw the outline.
Designing Artwork That Survives the Pour
Build the file the way you would for any cut sticker, then change three things for the dome.
Pull the artwork in. Leave a band of plain background between your outermost element and the cut line. That band sits under the shoulder where the lens distorts, so it should carry nothing you need read. Small type, a website address, a batch code, all of it belongs in the flat centre.
Go bolder than feels necessary. The resin adds gloss and depth, which flattens subtle contrast. Mid tone type on a mid tone background looks fine on screen and disappears under a dome. Push the contrast, thicken hairline rules, and set the smallest text a size up from where you would set it flat.

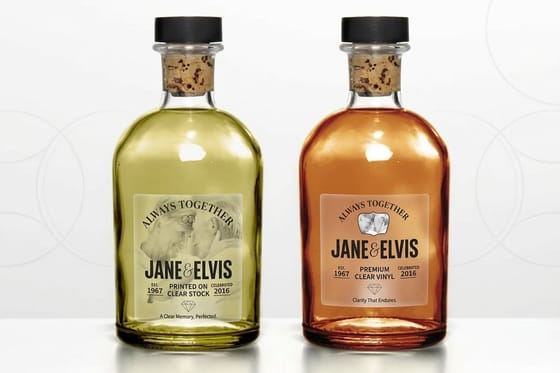

Decide what the background is doing. On white vinyl the dome deepens the colours and looks like an enamel badge. On clear stickers at $25, the dome shows whatever is behind the piece, so light artwork on a dark panel will vanish. Print a white underbase, or choose the white stock. The same trade-off is explained for flat work in vinyl stickers versus paper stickers and in PVC sticker printing explained, and it does not change just because resin is going on top.
Supply outlines rather than live fonts, keep the cut path as a separate spot coloured layer, and start from a correctly sized artboard in our blank template library. If a doming service is finishing the piece, send them the cut file before you print, because they will tell you which corners to open up while it still costs nothing to change.

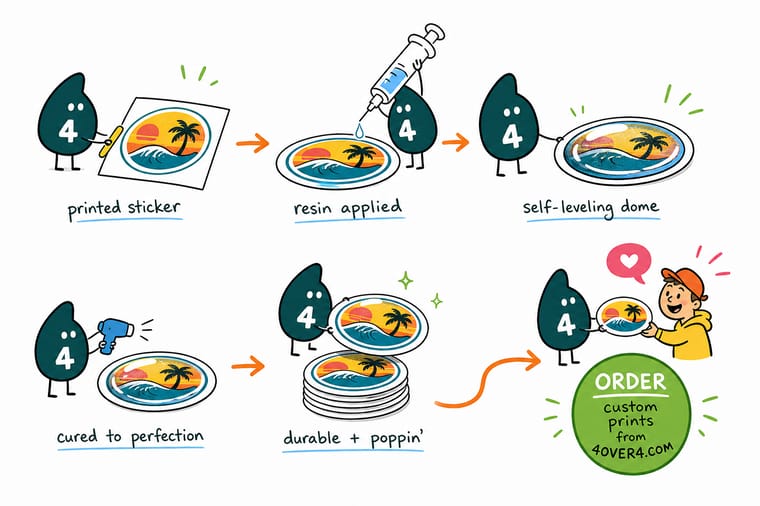

Wally explains the dome
One drop, one piece, one lens
Wally prints the sticker and cuts it first. Then he puts a single drop of clear resin in the middle and lets it run out to the cut edge, where it stops on its own and pulls itself into a curve. When it hardens, the ink is sealed under a lens that magnifies the middle and bends the edges, so he keeps the small type well away from the rim. He does one sticker at a time, which is exactly why he prints the giveaway pile flat.
Shop custom sticker printing →Specs and pricing
Tactile sticker finishes, sizes, and starting prices
If the dome is out of budget or out of spec, these are the finishes that give a sticker presence you can see and feel. Configuration choices and starting prices come straight from the 4OVER4.COM configurator.
Print it
Order the flat sticker the dome starts from
Explore more
Where to go next
By the numbers
Sticker printing you can count on at 4OVER4
Common Questions
Your domed sticker questions, answered
What is a domed 3D sticker?
It is an ordinary printed sticker with a clear resin lens poured over the top. The label is printed on vinyl or polycarbonate, cut to its final shape, and then a measured drop of two part polyurethane resin is placed on each piece. The resin flows out to the cut edge, stops there because surface tension holds it, and cures into a hard convex layer about a millimetre high. The print itself is nothing unusual. The dome is what you are buying, and it is the reason the sticker reads as three dimensional.
Are domed stickers waterproof?
The face of one is, completely. Cured polyurethane is a sealed plastic layer over the ink, so rain, washing, and most household cleaners never touch the print. What is not sealed is the underside. Water gets in at the adhesive line, not through the dome, which is why a domed sticker applied to a dusty or waxed surface can lift at one edge while the dome itself still looks new. Clean the surface with isopropyl alcohol and press from the centre outward.
Why do some domed stickers turn yellow?
They were domed in epoxy rather than polyurethane. Epoxy is the cheaper resin, it pours beautifully, and under ultraviolet light it ambers within a season or two. Polyurethane costs more and is the material used for anything that lives outdoors, from vehicle emblems to machine nameplates. If a supplier will not tell you which resin they use, treat it as an indoor product.
Can a domed sticker go on a curved surface?
A gentle curve, yes. A tight or compound curve, no. The cured dome is stiff and wants to stay flat, so on a small radius the resin resists while the adhesive tries to follow the shape, and the edge levers itself off. Water bottles, helmets and rounded control panels are usually fine for a small dome. A phone camera bump or a tool handle is not. For a tight curve, a conformable printed vinyl sticker beats a dome every time.
Does 4OVER4.COM print domed stickers?

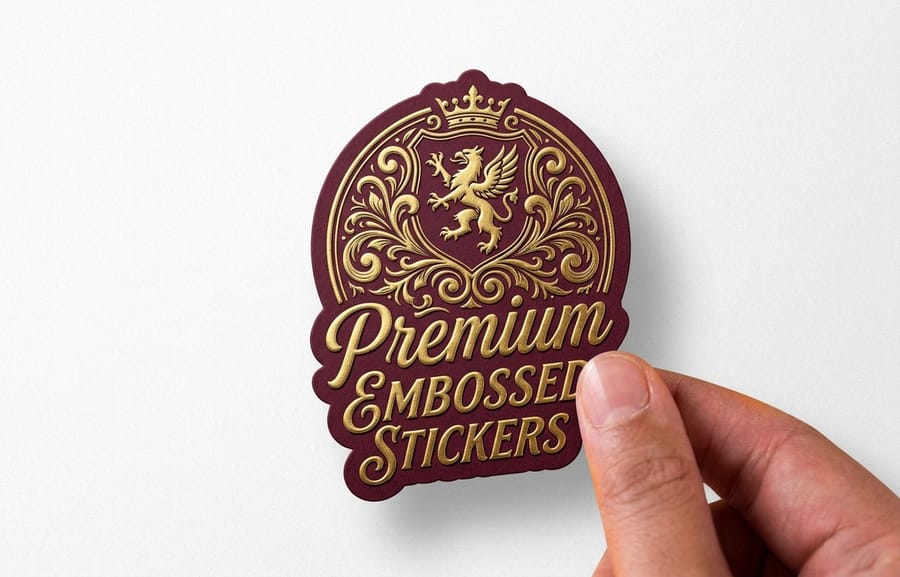

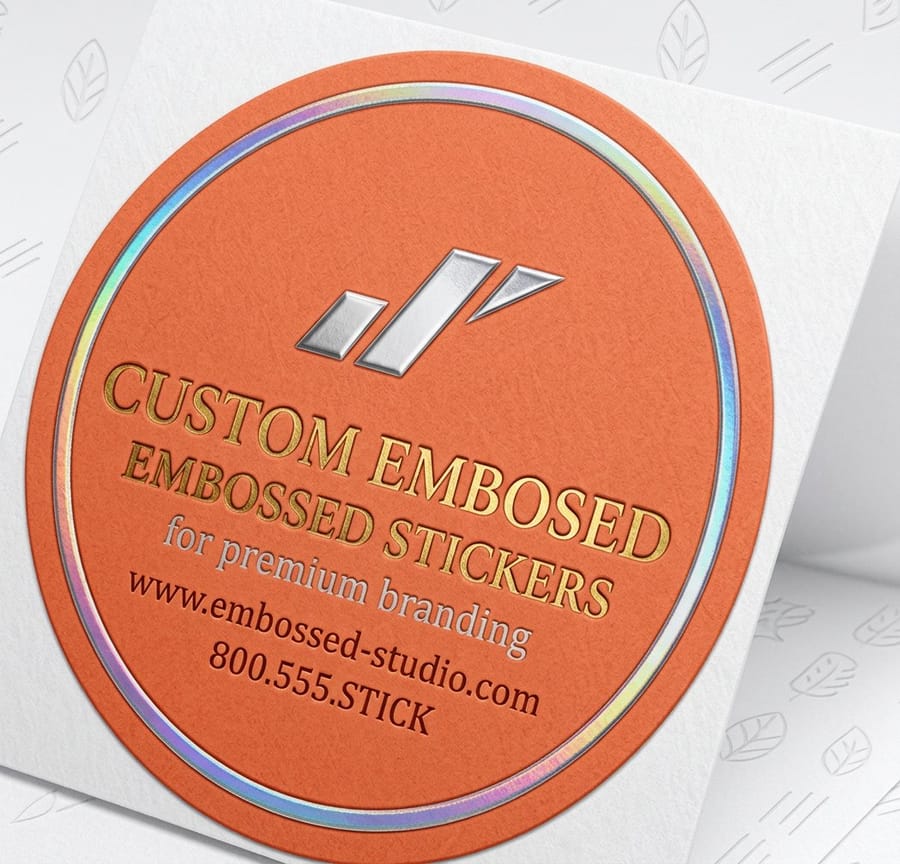

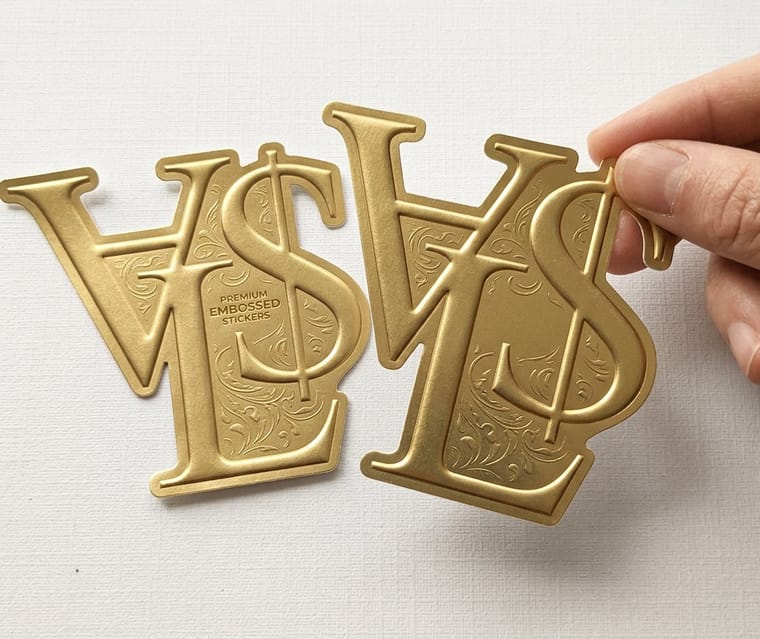

No. We print flat stickers and labels, and we do not run a resin doming line, so we will tell you plainly when a dome is the right call and when it is not. If you want the tactile, premium feel without the pour, embossed stickers raise the material itself and start at $322.98, and UV stickers add a raised gloss coat over selected areas starting at $25. If you specifically need a resin dome, buy your printed labels cut to shape first, then take them to a doming service, because most of them will dome supplied labels.
How thick is a domed sticker, and does it matter?
Face stock plus adhesive plus resin puts the finished piece roughly a millimetre and a half above the surface. That matters more often than people expect. It will not fit under a cover or a bezel, it will not pass through a laminator or a heat press, and on a laptop lid it stops the machine closing flat if it sits near the hinge line. Check the clearance before you commit to a dome, because there is no thin version of the effect.
What sizes work best for doming?
Small pieces. Badges, logos and emblems between about one and three inches across are the sweet spot, because the resin holds an even height across that span. Go much larger and the pour needs noticeably more resin, the centre reads thicker than the rim, and any dust that lands during the cure ends up locked in the middle of a large clear window. If you need to cover a big area, print a large flat vinyl sticker and dome a small badge to sit beside it.
